3 Ways T-type stainless steel Ball Valve

Product number:904L

Nominal diameter:DN100

Pressure range:PN16

Operating temperature:-70℃～280℃

Body material:Body: 904L

Applicable medium:Liquid

Operation method:Body: 904L

Live Chat Get Latest Quotation
PDF Download

3 Ways T-type stainless steel Ball Valve

three ways ball valve manufacturer
Stainless steel ball valves factory
Name: 3 Ways T-type stainless steel Ball Valve
Material: Body:CF8M Ball: Stainless steel A182 F316  Seals:PTFE Operation:Pneumatic Actuator
Nominal Pressure: PN16
Nominal Diameter: DN80
End Connection: Flange
Operation: Pnuematic
Valve type: T- type
Working Temp.: -196~500℃
Design Standard: ISO 17292
Test / Inspection: ISO 5208
End Connection: EN 1902-

    PS: We also can do according to customer's requirements.

three ways ball valve manufacturer

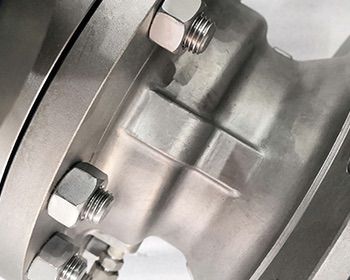

Whole sale stainless steel ball valve manufacturerBolts&Nuts


All nuts should be assembled on a bolts of the same material,
at least two thread pitches protruding.

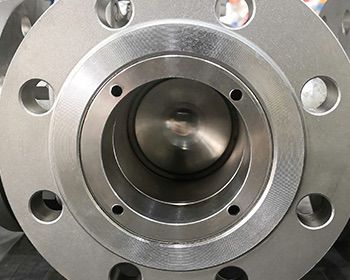

T-port ball valve manufacturerT-port


T-port three way type ball valve

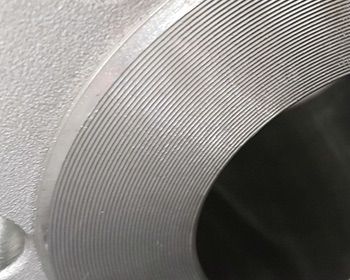

Flanged stainless steel ball valves factoryFlange face finish



The ASME B16.5 code requires that the flange
face(raised face and flat face) has a specific
roughness to ensure that this surface be compatible
with the gasket and provide a high quality seal.
